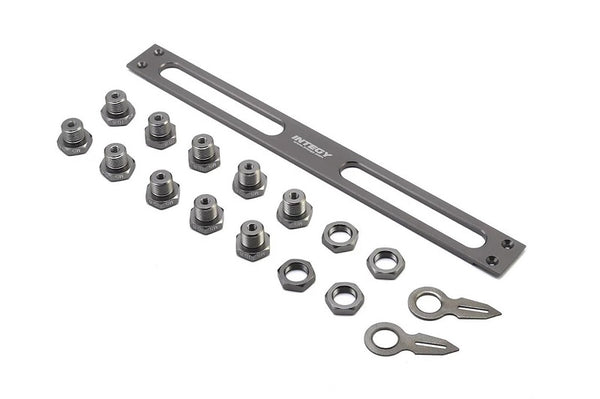

If you have ever been to a race track you will know that proper chassis setup is critical, and can be the difference between a DNF and a checkered flag. for most 1/10 and 1/8-scale GT, buggy, truggy, and monster truck owners we offer our 30-piece Universal Setup Station System. Crafted from aluminum and anodized in a gunmetal finish, the setup station can measure each corner of your vehicle individually - up to 15-degrees of camber, 30-degrees of caster, and +35/-40-degrees of toe. The measuring plates all ride on ball bearings for smooth movement and precise readings.
Out of the box, the Universal Setup Station System will work with most 1/8-scale buggy or truggy with standard 1/8-scale axles and 17mm wheel nuts. The Universal Setup Station also includes two sets of adapters: Type-A for vehicles with 6mm x M5-threaded axles such as the Traxxas Revo/T-Maxx 2.5/3.3, HPI E-Savage, and Losi LST1; Type-B adapters for the HPI Savage 2.5/4.6/X/XL which uses 8mm x M5-threaded axles with a reverse thread on one side.
NOTE: Instructions not included.

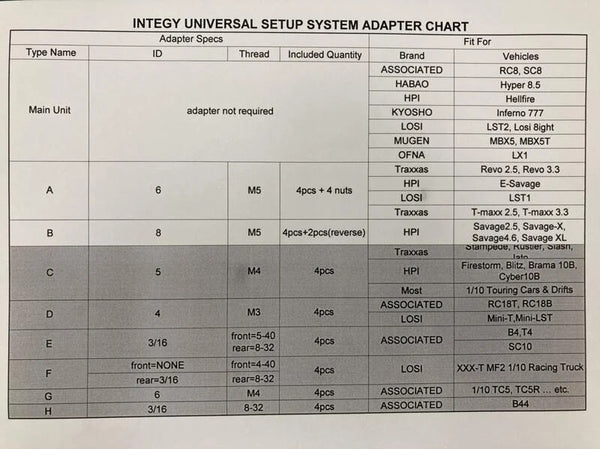

Optional Adapters:
Type C Adapters (C23130 - Sold Separately) Fit: Traxxas: Stampede, Rustler, Slash, Jato; HPI: Firestorm, Blitz, Brama 10B, Cyber 10B; 1/10 Touring and Drift Cars, as well as other vehicles with the same size axles.
Type D Adapters (C23131 - Sold Separately) Fit: Associated: RC18T, RC18B; Losi Mini-T, Mini-LST, as well as other 1/18 vehicles with the same size axles.
Type E Adapters (C23132 - Sold Separately) Fit: Associated: B4, T4, SC10, as well as other 1/10 vehicles with the same style axles.
Type J Adapters (C23344 - Sold Separately) Fit: Traxxas 1/16 scale vehicles.
